VLX 100 Pivot Door

VLX 100 Pivot Door in Santa Clarita, CA | Juniper Windows Santa Clarita

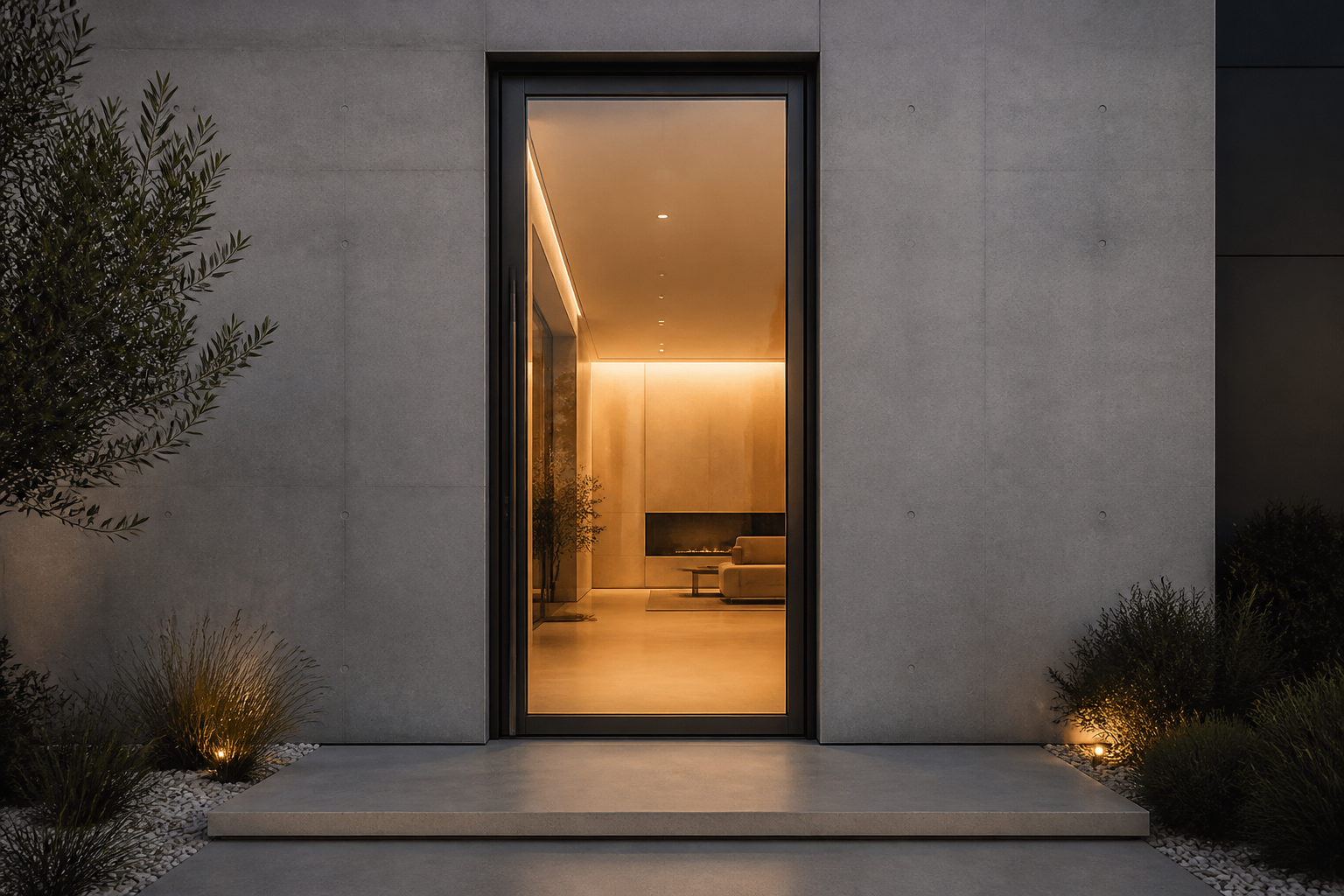

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. The result is a door that can span up to 60 inches wide and 120 inches tall, carrying oversized glass panels that standard hinged doors simply can’t support. Homeowners across Santa Clarita choose pivot doors for the architectural statement they make at the front entry, and we’ve installed them in Valencia, Stevenson Ranch, Saugus, Canyon Country, and Newhall. Juniper Windows Santa Clarita is an authorized ViewLux installation partner, which means you get factory-backed product support combined with local installation crews who understand how these doors perform in our high-desert climate. Call (661) 523-0347 to schedule a free on-site measurement and quote.

Call (661) 523-0347

Product Overview – VLX 100 Pivot Door

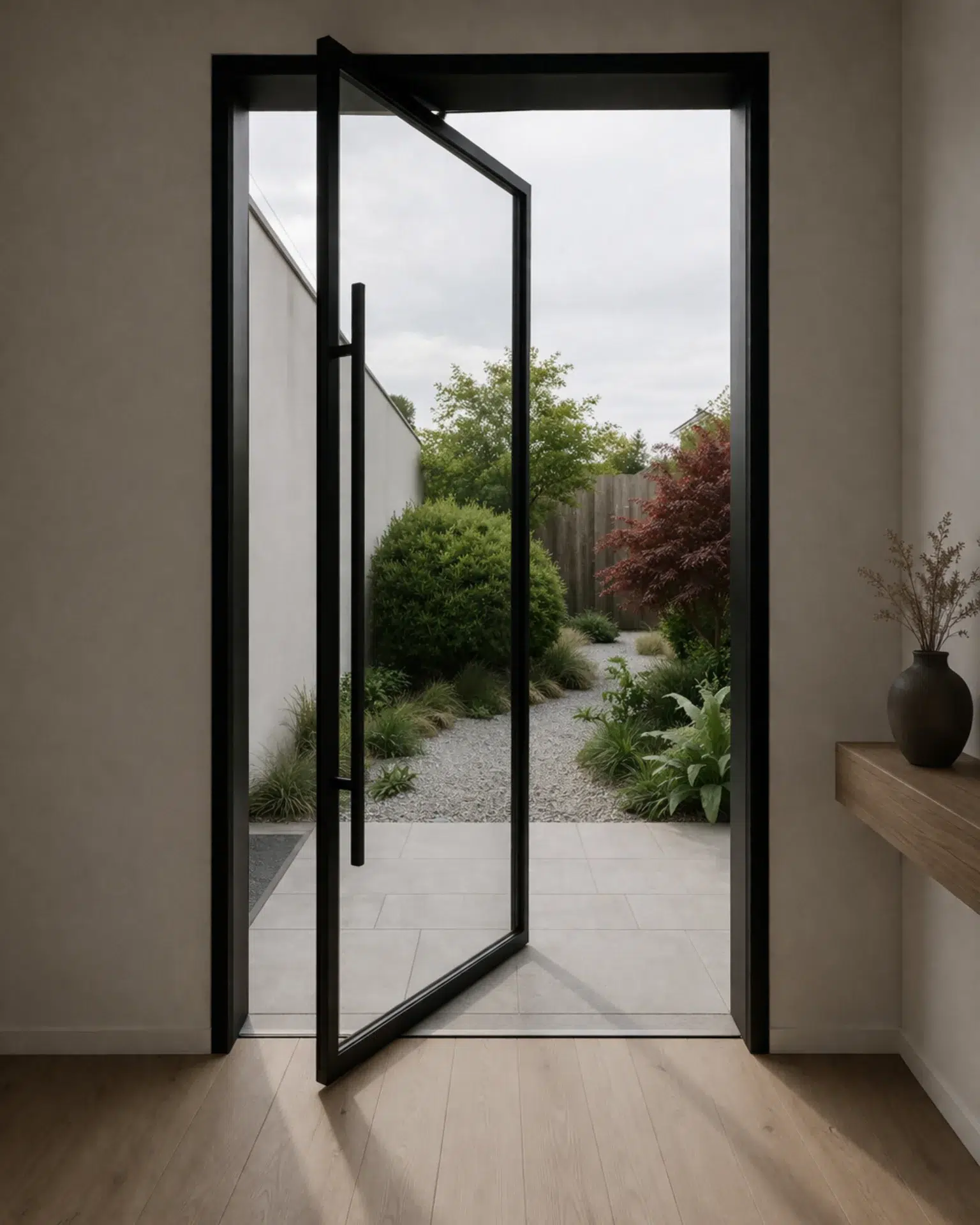

The VLX 100 exists for one reason: to make the entry door the focal point of the home. A pivot door doesn’t just open; it sweeps. The rotation point sits inward from the frame edge, which changes the entire feel of the opening, allowing a wider, heavier slab to move with surprising ease. That’s why architects and designers in Santa Clarita keep specifying pivot doors for modern ranch renovations in Sand Canyon, mid-century remodels in Valencia, and new contemporary builds in Bridgeport. The door is built from extruded aluminum with a profile width of 2.56 inches and wall thickness of 0.098 inches, which gives it the structural backbone to hold large glass lites without sagging or warping over time. Aluminum also resists the dry heat, UV exposure, and temperature swings that are a daily reality in Santa Clarita, especially in neighborhoods like Tesoro del Valle and Plum Canyon. Buyers choose the VLX 100 when they want a front entry that reads as intentional design rather than a standard off-the-shelf door. It works with single-story and two-story homes alike, and because the door is fabricated to order, the glass configuration and finish are tailored to each project. We have installed VLX 100 doors on homes from Placerita Canyon to Fair Oaks Ranch, and each one is ordered, built, and installed specifically for that address.

Technical Specifications

Here are the core numbers for the VLX 100 Pivot Door, as specified for Santa Clarita installations:

• Frame profile width: 2.56 inches
• Aluminum wall thickness: 0.098 inches
• Maximum panel span: 60 inches wide by 120 inches tall
• Pivot system: Vertical center axis, floor-to-header pivot hardware
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal rating: Thermally broken frame, NFRC-rated configuration
• Installation standard: AAMA 2400/2410 compliant
• Perimeter seal: AAMA 812 low-expansion foam sealant
• Hardware: Heavy-duty pivot hinges rated for the full slab weight

These numbers matter because they determine what your entry can actually do. A 60 by 120 inch panel is a serious piece of engineering, and the 0.098 inch wall thickness is what keeps the frame rigid under wind load and daily use.

Performance Features

Thermal Efficiency
Thermal break technology separates the interior and exterior aluminum faces, interrupting heat transfer through the frame. In Santa Clarita summers, where afternoons routinely pass 100 degrees, that break keeps conditioned air inside and the blast of heat outside. The system is NFRC-rated for energy performance when paired with Low-E glass.

Acoustic Performance
The VLX 100 is built to reduce exterior noise. The heavy aluminum frame, combined with laminated glass, attenuates traffic and neighborhood sound. Homes near major corridors like Magic Mountain Parkway, Valencia Boulevard, or Highway 14 benefit most. Laminated glass is the real workhorse here; it cuts high-frequency noise that tempered glass lets through.

Airtightness & Weather Seal
The frame is engineered for a tight perimeter seal. During installation, we use AAMA 812 low-expansion foam on every joint, eliminating the small gaps that cause drafts. In Santa Clarita, Santa Ana wind events can push 60 to 70 mph gusts through the canyons, and a properly sealed pivot door stays quiet and draft-free.

Waterproofing
Pivot doors need meticulous waterproofing because the slab meets the floor at an unusual angle compared to a hinged door. The VLX 100 frame carries integrated weather stripping, and our installation process includes a final water test. We check weep paths and threshold drainage so wind-driven rain during December storms slides off instead of seeping in.

Wind Resistance
The door’s wind-load rating is configured for local climate requirements, including the gust patterns in higher-elevation and canyon-adjacent neighborhoods like Stevenson Ranch and east Canyon Country. The 0.098 inch aluminum wall and 2.56 inch profile width give the slab the stiffness needed to stay true in high wind without flexing against the weather seal.

Security & Hardware
Pivot hardware is load-rated for the full slab weight, and impact-resistant laminated glass is available for homeowners who want an extra security layer. Laminated glass also makes forced entry dramatically harder than standard tempered panels. We recommend it for any front entry visible from the street, and it’s a common upgrade in Santa Clarita neighborhoods across the valley.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black and Pure White dominate modern and transitional builds: black reads sharply against stucco and white complements bright, minimalist entries. Anodized Silver has a metallic, industrial feel that suits mid-century homes in Valencia. Bronze and Champagne skew warmer; we see them work well on Spanish Revival and Mediterranean exteriors, which are common in older Santa Clarita neighborhoods. Teak Wood is a specialty finish that mimics the warmth of timber on an aluminum substrate, perfect for homeowners who want the look of wood without the maintenance in our dry climate.

On glass, Clear is the baseline: maximum visibility, no filtering. Frosted and Obscure provide privacy while keeping natural light, ideal for entries that face a street or neighbor. Low-E reflects solar heat, cutting cooling costs through Santa Clarita summers. Tempered glass is the safety standard; it fractures into small pieces rather than sharp shards. Laminated glass layers an interlayer between two panes, adding sound dampening and impact resistance, and it’s our most-requested upgrade for front entries.

Installation by Juniper Windows Santa Clarita in Santa Clarita

Here’s the part most dealers won’t tell you: a pivot door is only as good as the crew that sets it. A pivot system depends on perfect geometry. If the header is even 1/16 inch out of level, the door binds, the seals drag, and the pivot hardware wears prematurely. The manufacturer warranty does not cover doors that fail due to improper installation. That’s the quiet risk of buying from a box store or a general contractor who installs a pivot door once a year. We install them week in and week out across Santa Clarita.

Our process starts with a pre-installation inspection of the rough opening. We verify framing dimensions, check for plumb and level, and confirm that the header can carry the full slab weight, which on a 60 by 120 inch glass panel is significant. We set the pivot points first, then hang the slab, adjusting in small increments until the door swings true with even clearances around the full perimeter. Every perimeter joint is sealed with AAMA 812 low-expansion foam, which is part of the AAMA 2400/2410 installation standard we build to. After the door is set and sealed, we run a water test, check the door’s open and close sweep for any binding, and walk the job with you before we leave. The site is left clean, the old door hauled away, and the final product documented for warranty registration. In Santa Clarita, where daytime temperatures can swing 40 degrees between morning and afternoon, proper installation is not optional; it’s what keeps the door operating smoothly season after season. Call (661) 523-0347 to schedule your free measurement.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Santa Clarita

If you’re considering a pivot door for your Santa Clarita home, start with a measurement. We’ll come to your property, assess the rough opening, talk through glass and finish options, and give you a written line-item quote with no surprise change orders. Call (661) 523-0347 to schedule your free estimate, or stop by our Santa Clarita showroom to see the VLX 100 in person.

Written by the team at Juniper Windows Santa Clarita, serving Santa Clarita and surrounding communities with authorized ViewLux products and AAMA-compliant installation.
