VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Santa Clarita, CA | Juniper Windows Santa Clarita

The VLX 100 Swing / Entry Door is a modern aluminum entry door built around a minimalist frame and a multi-point locking setup. In Santa Clarita, where summer heat and high wind events both test a front door, this series stands out because it pairs a slim 2.56-inch profile with real thermal-break engineering. We’re Juniper Windows Santa Clarita, a local authorized ViewLux installation partner, and we sell, measure, order, and install this door across Santa Clarita, Valencia, Canyon Country, Saugus, and Newhall. If you’re pricing an entry door replacement, call us at (661) 523-0347 and we’ll give you a written line-item quote for the VLX 100 configured for your specific opening.

Call (661) 523-0347

Product Overview – VLX 100 Swing / Entry Door

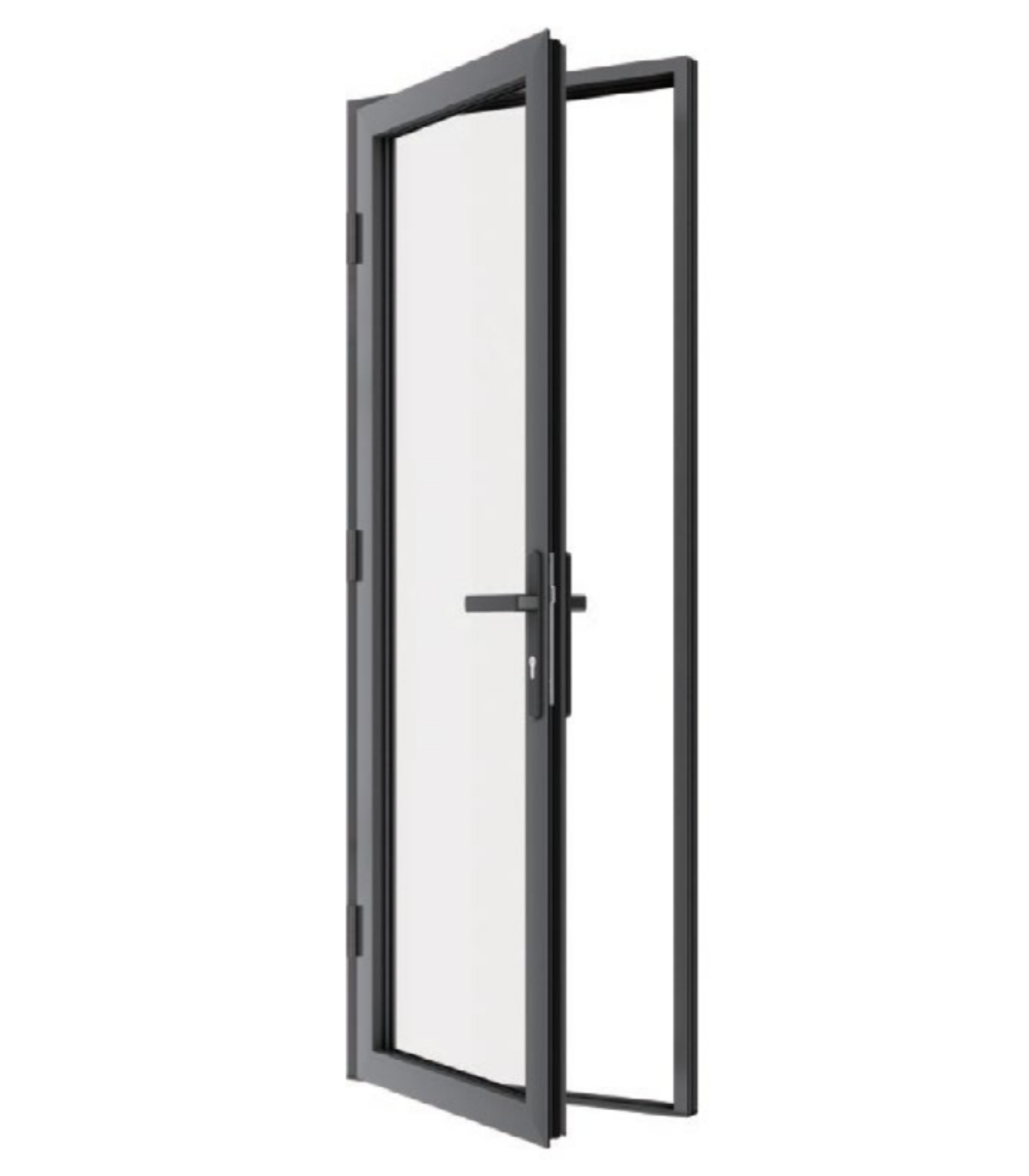

The VLX 100 is a single-entry aluminum swing door designed for homeowners who want a tight, modern front door without a heavy, visually bulky frame. The profile width is kept to 2.56 inches, which reads more like a storefront glass wall than a traditional wood door casing. That slim profile is part of what makes it popular in Santa Clarita’s newer subdivisions, particularly the contemporary builds in River Village, Skyline Ranch, and the older ranch homes being modernized around Saugus and Plum Canyon.

The door is engineered with a 0.098-inch wall thickness, which gives the aluminum frame the rigidity it needs for daily use without adding visual bulk. The multi-point locking system engages at multiple points along the jamb when you lift the handle, rather than relying on a single latch. That’s a meaningful upgrade over older single-point entry doors we routinely replace around Santa Clarita. Because the frame is aluminum and the locking system is European-style, the door stays square over time, which is not always true of wood doors in our dry, hot climate that shrink and swell through the seasons.

Most buyers choose the VLX 100 for one of three reasons: they want a modern front entry without paying custom storefront prices, they want a door that holds up to sun exposure without warping, or they’re replacing a patio-facing entry that gets heavy use and want something that won’t sag. It works well as a front door, a side-entry door, or a door between a courtyard and interior space. As an authorized ViewLux partner, Juniper Windows Santa Clarita orders the VLX 100 directly through legitimate factory channels, so warranty coverage stays intact and the hardware is genuine, not a lookalike part sourced from a third-party.

Technical Specifications

Here’s how the VLX 100 Swing / Entry Door comes configured, with the numbers exactly as specified by ViewLux. These are the values we quote against when we measure a Santa Clarita job.

• Frame material: Extruded aluminum with thermal break separation between interior and exterior metal.
• Wall thickness: 0.098 inches on the aluminum extrusions.
• Profile width: 2.56 inches, giving the door its slim, modern sightline.
• Maximum span per panel: Up to 48 inches wide, depending on glass weight and wind-load requirements.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated.
• Finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or no screen.
• Hardware: Multi-point locking system, standard on the VLX 100.

For Santa Clarita homes, most entry door openings run between 32 and 48 inches wide, so the span capacity covers virtually every single-door application we see across the valley. The 0.098-inch wall thickness is heavier than what budget aluminum doors use, which matters when a door gets opened and closed hundreds of times a month.

Performance Features

Thermal Efficiency

Thermal break technology is built into the frame, separating the exterior aluminum from the interior so heat from the Santa Clarita sun doesn’t conduct straight through the metal. NFRC-rated energy performance applies to this system, and pairing the thermal break with Low-E glass cuts cooling loads during our long summer months. This is not a single-pane storefront door.

Acoustic Performance

Sound control is a real benefit for homes along Bouquet Canyon Road, Sierra Highway, or the 14 corridor where road noise sits in the background all day. Laminated glass is the upgrade we recommend for the biggest noise reduction, though even the standard insulated unit with the thermal break closes the air gap that lets sound leak through an older door’s frame.

Airtightness & Weather Seal

Airtightness ratings come from the way the leaf seals against the frame. When installed correctly with the full perimeter seal, the VLX 100 stops the drafts common in older Santa Clarita entry doors. For our installation crew this is non-negotiable. We use AAMA 812 low-expansion foam on every perimeter joint so the finished product performs the way the rating says it will.

Waterproofing

Water intrusion prevention is where most entry door installations fail. The VLX 100 is designed with drainage paths in the sill and a compression gasket at the threshold, but those only work when the installer sets the door level and seals the perimeter correctly. Juniper Windows Santa Clarita installs to AAMA 2400/2410 standards, which covers the full approach to water management around the door opening. In our Santa Clarita climate, with occasional heavy January downpours, that’s the difference between a dry entry and a warped jamb two years in.

Wind Resistance

Wind-load rated configurations are available for Santa Clarita’s local climate requirements. When we get sustained Santa Ana wind events through the canyon passes, a properly wind-rated door doesn’t flex in the frame or whistle around the weatherstripping. We confirm the wind-load requirement for your specific elevation and exposure before we order, not after.

Security & Hardware

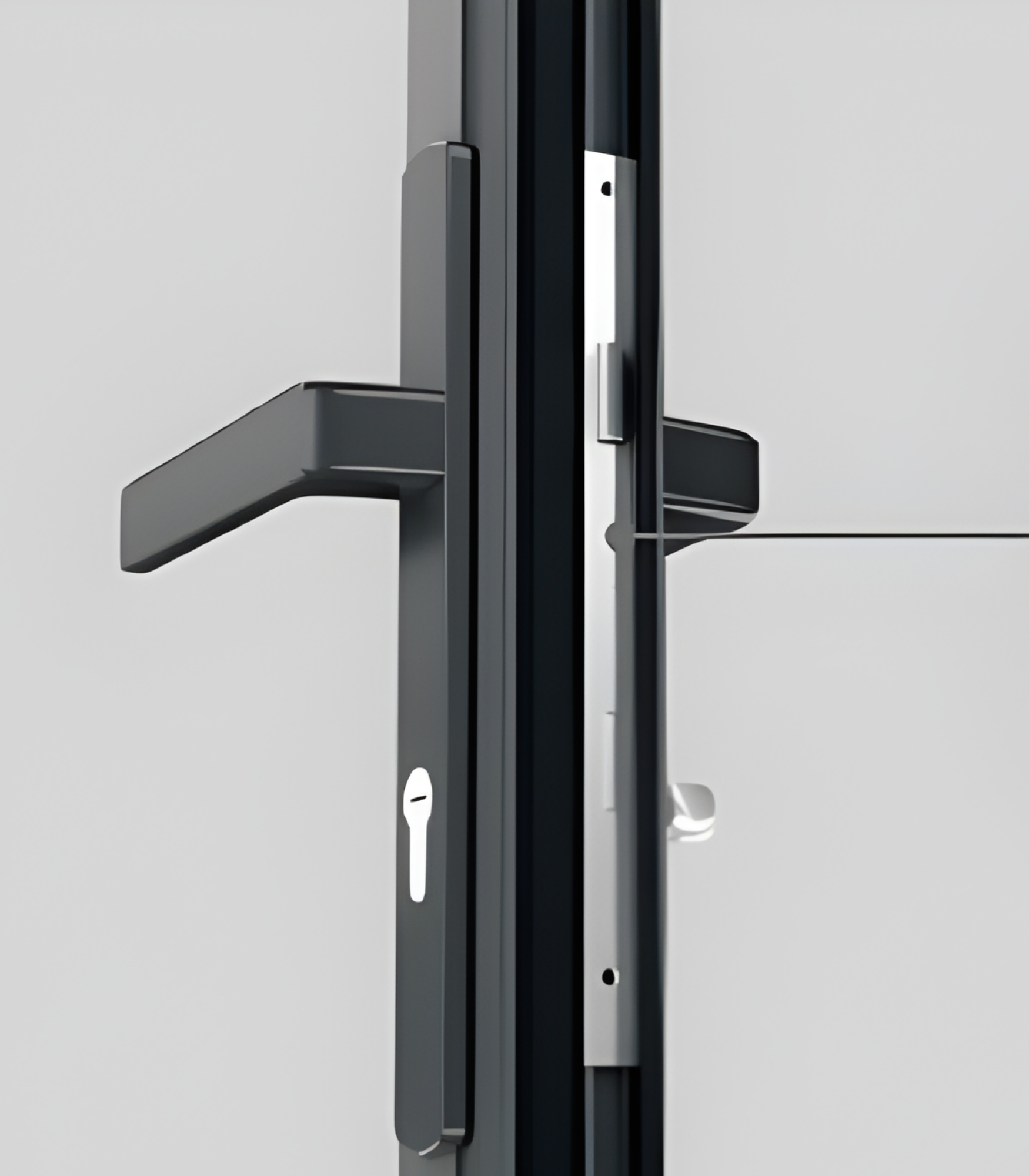

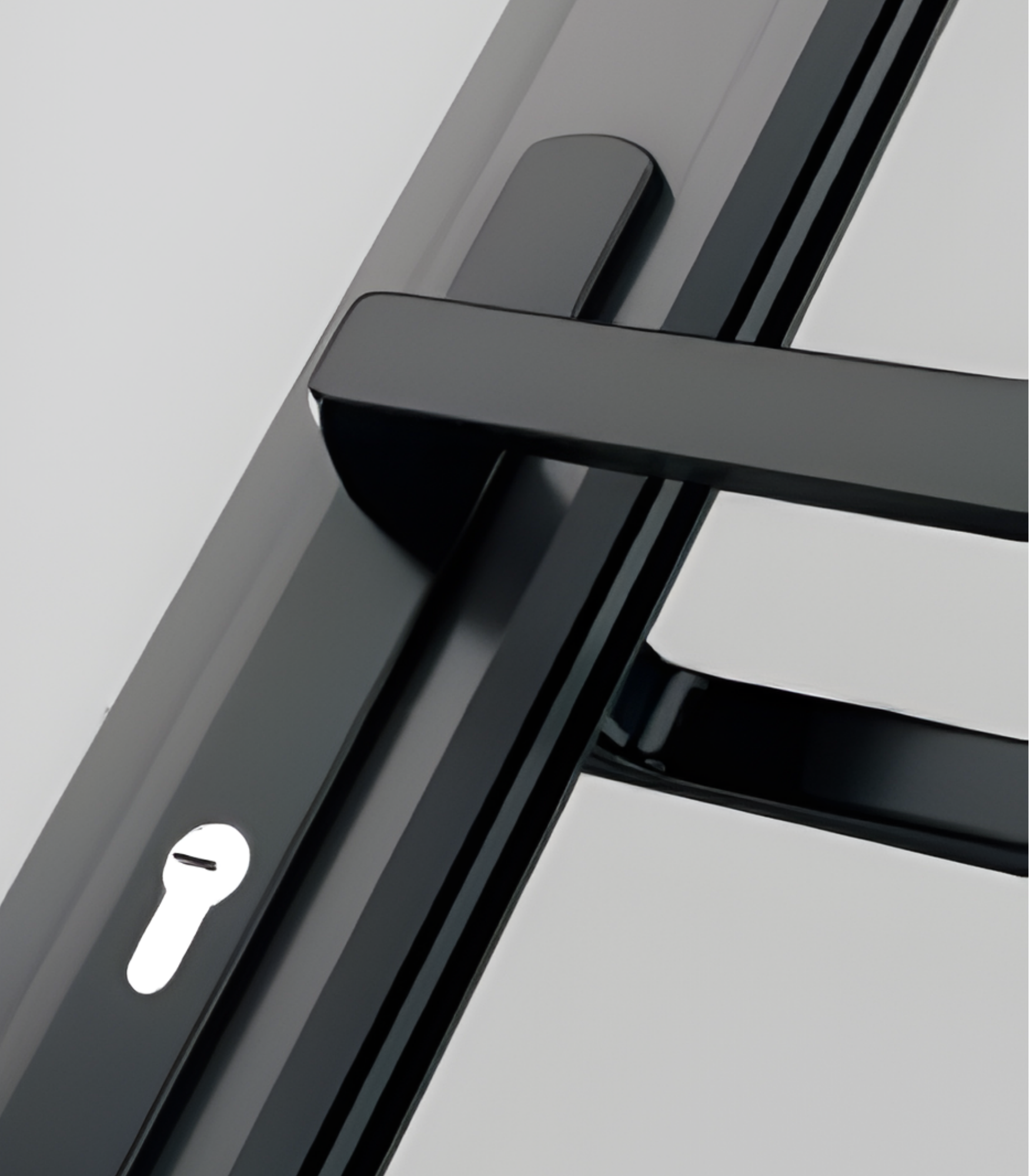

Multi-point locking means the bolt engages at three or more points along the jamb simultaneously, spreading the load across the full frame rather than holding at one strike plate. That’s a significant security upgrade over typical single-cylinder deadbolts, and it also keeps the door pulled tight against the weather seal, which helps the acoustic and air performance stay consistent over time.

Color & Glass Options

The VLX 100 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the most popular choice in Santa Clarita right now, especially for the white stucco and black-trim look common in Skyline Ranch and parts of Valencia. Pure White suits the traditional ranch and Mediterranean homes across Saugus and Canyon Country, where a white entry door ties into painted trim and window casings. Anodized Silver and Champagne read as more architectural, working well with modern commercial-style openings and homes with a lot of glass. Bronze and Teak Wood give a warmer visual without chasing a fake wood grain, which is useful if you want a wood tone but not the maintenance.

Glass selection is where most Santa Clarita homeowners make decisions based on orientation. A west-facing entry in Castaic or Tesoro can catch direct afternoon sun, so Low-E glass is worth the small step up. Frosted and Obscure options provide privacy for entries that face a neighbor or a street, while still passing light. Tempered glass is required in many door applications by code, so we’ll confirm that with you. Laminated is the upgrade for security and noise, and Clear keeps the design as transparent as the door itself. A retractable screen is available if you want airflow in spring and fall without opening the house to bugs.

Installation by Juniper Windows Santa Clarita in Santa Clarita

We install the VLX 100 Swing / Entry Door the same way on every Santa Clarita job: clean, square, level, and sealed. It starts with a pre-install inspection of the existing rough opening. We check the subfloor or threshold condition, look for dry rot or water staining from the old door, and verify the structural framing is sound before we order anything. No one wants a brand new aluminum door bolted into a compromised opening.

During install, the frame gets set level, plumb, and square, which matters more than it sounds. A door out of square even a quarter inch will hang open, drag on the slab, and never seal correctly against the weatherstrip. The multi-point locking system on the VLX 100 is unforgiving if the frame is twisted, because the bolts have to line up with the keeps at every point along the jamb. We set the frame, shim it properly, and fasten it into place, then we apply AAMA 812 low-expansion foam sealant along the entire perimeter joint. That foam fills the gaps between the frame and the rough opening, which stops air movement, water movement, and reduces noise transfer.

Every installation follows AAMA 2400/2410 installation standards, which cover the full sequence of flashing, sealing, and water management for a door in a wall opening. After the door is hung and adjusted, we run a final water test at the threshold and head, verify the locking engagement points, and clean the full work area before we leave. The manufacturer warranty assumes professional installation. If a door is installed incorrectly, the warranty is effectively gone. That’s the single biggest reason to use an authorized partner like Juniper Windows Santa Clarita rather than a generalist handyman. In Santa Clarita, where building code compliance is enforced on permitted projects, using an installer who follows AAMA standards keeps your project clean if an inspector looks at the finished opening.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Santa Clarita

If you’re ready to price the VLX 100 Swing / Entry Door for your Santa Clarita home, call Juniper Windows Santa Clarita at (661) 523-0347. We’ll schedule a free on-site measurement, walk through finish and glass options in person, and provide a written line-item quote before you commit to anything. Ordering a premium entry door without a real measurement is the fastest way to waste money, so let’s start the process correctly.

Written by the team at Juniper Windows Santa Clarita, authorized ViewLux installation partner serving Santa Clarita, CA.
